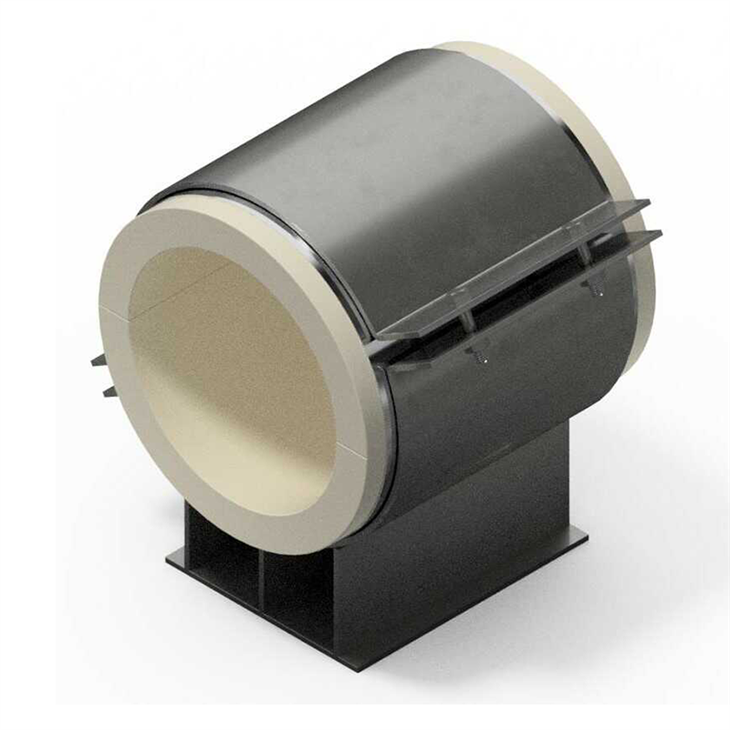

Insulation pipe support
A pipe support or pipe hanger is a design element that transfers the load from the pipe to the supporting structure. The load includes the weight of the pipe itself, the contents carried by the pipe, all fittings attached to the pipe and the pipe covering (e.g. insulation). The four main...
Features
Products Description
| Parameter item | Typical values/unit |
| Service Temperature | -196°C to +120°C |
| Insulation Material | HDPU (High-density polyurethane) / Polyisocyanurate (PIR) / Permali |
| Density of Insulation | 160kg/m³, 224kg/m³, 320kg/m³ |
| Compressive Strength | ≥ 2.5 MPa / 5.0 MPa |
| Thermal Conductivity | ≤ 0.035 W/(m·K) @ 24°C |
| Cradle/Shoe Material | Stainless Steel (SS304/SS316L) / Low Temp Carbon Steel (A333 Gr.6) |
| Vapor Barrier | Butyl Rubber / Mylar / Aluminium Foil |
| Flame Retardancy | Class B1 / ASTM E84 Class A |
| Standard Compliance | CINI Standard, MSS SP-58 |
| Vapor Barrier Material | Butyl Rubber / Mylar / Alu-Foil |
| Vapor Permeability | ≤ 0.02 Perm-inch (Complies with ASTM E96 standard) |
| Sealing / Bonding | High-strength Cryogenic Adhesive |
| Anti-Condensation | 100% Hermetically Sealed |
A pipe support or pipe hanger is a design element that transfers loads from the pipe to the supporting structure. The load includes the weight of the pipe itself, the contents carried by the pipe, all fittings attached to the pipe, and the pipe covering (e.g., insulation). The four main pipe supports or pipe hangers are the design elements that transfer the load from the pipe to the support structure. The load includes the weight of the pipe itself, the contents carried by the pipe, all fittings attached to the pipe, and the pipe covering (e.g., insulation). The four primary functions of a pipe support are to anchor, guide, absorb shock, and support the specified load. Pipe supports for high or low temperature applications may contain insulation. The overall design configuration of the pipe support assembly depends on the load and operating conditions.
TS Pipeline Technology Ltd. is your partner for the most diverse tasks in technical insulation and other industrial fields. For example, if you are looking for a solution for efficient pipe insulation, elbow insulation or tank insulation, we are the right company for you!
Cold Insulation pipe support and HOT Insulation pipe support - these are just a few examples of the TS product line.
The Insulation pipe support we make consists of two types.
Some of the most important components of our product range come from the fields of fastening technology and technical insulation. For example, the TS Insulation Ring is a pipe support fitting made of closed-cell, high-density polyurethane foam with foam galvanized steel hoops for thermally decoupled pipe support.
The unique design of the insulating ring has provided extreme durability for decades while effectively preventing thermal bridging. Equally versatile are the TS pipe support fittings. We manufacture pipe supports made of PUR / PIR exactly as you wish, so they are suitable for almost any application. In addition, we offer a wide range of custom fittings for the insulation of pipes and elbows. We offer insulation caps.
Do you have any questions about pipe supports, tank insulation or other subject areas? Contact us!
