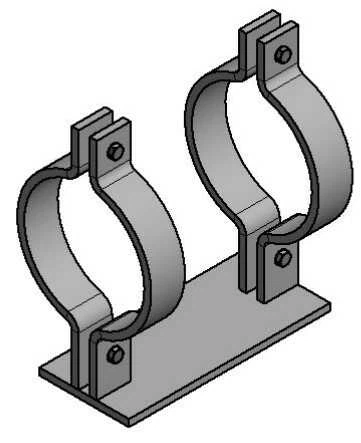

Pipe Shoes Support



Parameter Table	Example
Support Type	Rigid, Spring, Roller, Sliding
Pipe Size (NPS/DN)	1/2" to 60" (DN15 - DN1500)
Material Standard	ASTM A36, SS304, SS316, A105
Design Standard	MSS SP-58, ASME B31.1
Max. Design Load	Up to 1000 kN
Temperature Range	-29°C to +650°C
Surface Protection	Hot Dip Galvanized (HDG), Epoxy
Clamping Style	Two-bolt, Three-bolt, U-bolt
Insulation Type	Hot Insulation / Cold Insulation (Cryogenic)



















1. Power & Steam Systems

Specific applications: Main steam pipes in power stations, boiler feedwater systems, heat collection piping.

Technical requirements: High-temperature resistance (in conjunction with alloy steel materials), high load-bearing capacity. Typically used with variable-force/constant-force spring hangers.



2. Refinery & Offshore

Specific Applications: Refinery pipe racks, offshore drilling platforms, internal piping on oil tankers.

Technical Requirements: Exceptional corrosion resistance. Commonly utilises SS316L or hot-dip galvanised (HDG) materials, often with internal linings to prevent electrochemical corrosion.



3. Water Treatment & Pump Stations

Specific Scenarios: Inlet/outlet piping for pump stations, sewage treatment plants, desalination facilities.

Technical Requirements: Vibration damping and noise reduction. Typically employs rubber-lined pipe clamps.



4. Commercial Building HVAC & Fire Protection

Specific Scenarios: Air-conditioning water circulation in high-rise buildings, plant room piping, fire sprinkler systems.

Technical Requirements: Rapid installation, lightweight, UL/FM certification compliant.



5. Hygienic Industries

Specific Applications: Beverage production lines, cleanroom piping.

Technical Requirements: Polished surfaces, dead-end-free design, dust-resistant.









1. May I request a sample?



Answer: Samples are not provided free of charge.



2. Can I request changes to packaging and shipping methods?



Answer: Yes, we can modify packaging and shipping methods according to your requirements, but you will be responsible for any associated costs and price differences.



3. May I request early dispatch?



Answer: This depends on our warehouse stock availability.



4. Can I have my own logo printed on the products?



Answer: Yes, you may send us your design artwork and we can produce your logo, but you will be responsible for the associated costs.



5. Can you manufacture products based on my design drawings?



Answer: Yes, we can produce goods according to your design specifications and endeavour to meet your requirements.



6. What payment methods do you accept?



Answer: To safeguard your order, we accept bank transfers (T/T).



7. Do you accommodate custom dimensions?



Answer: Yes.
